11/15 Watt; LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 6 Inch; Round; Flat
$46.46
On Sale
Normally $58.07 | You Save $11.61
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer has 8569 items available.
Dimensions
Height: 1.34"
Width: 6.77"
Product Overview

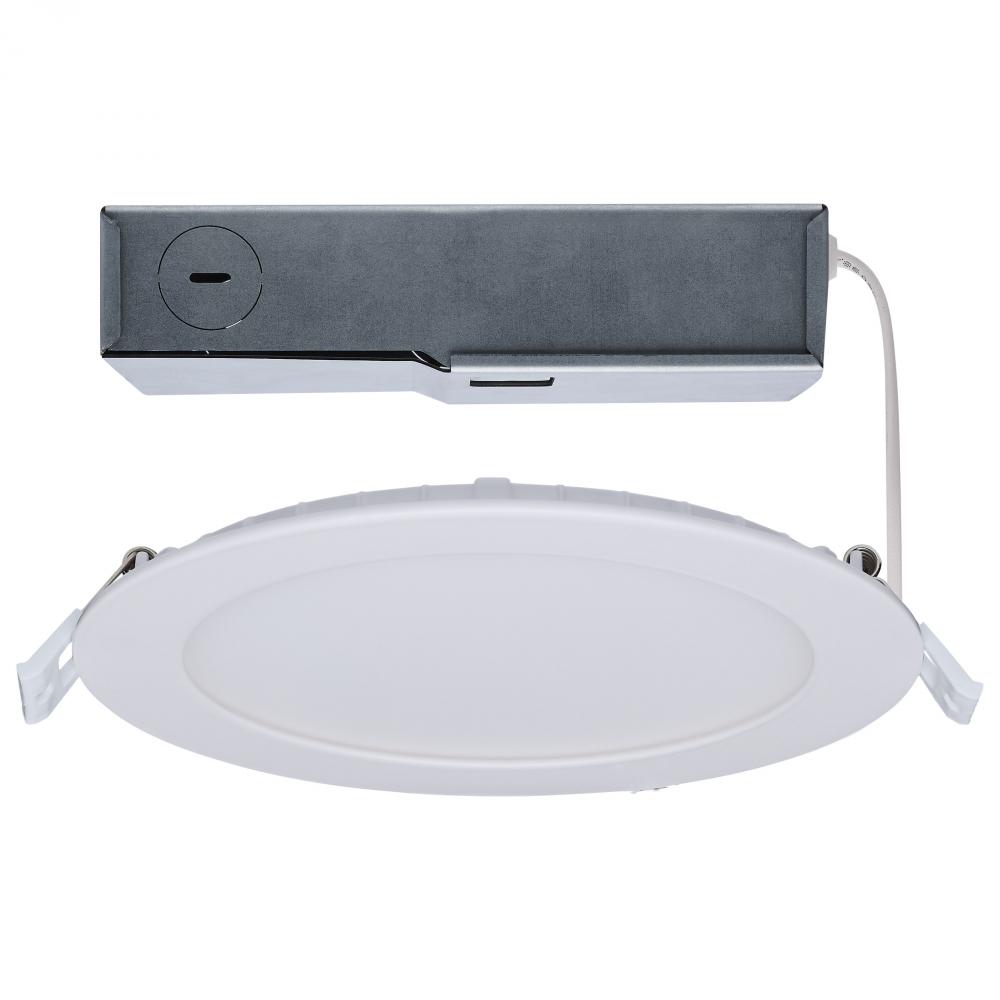

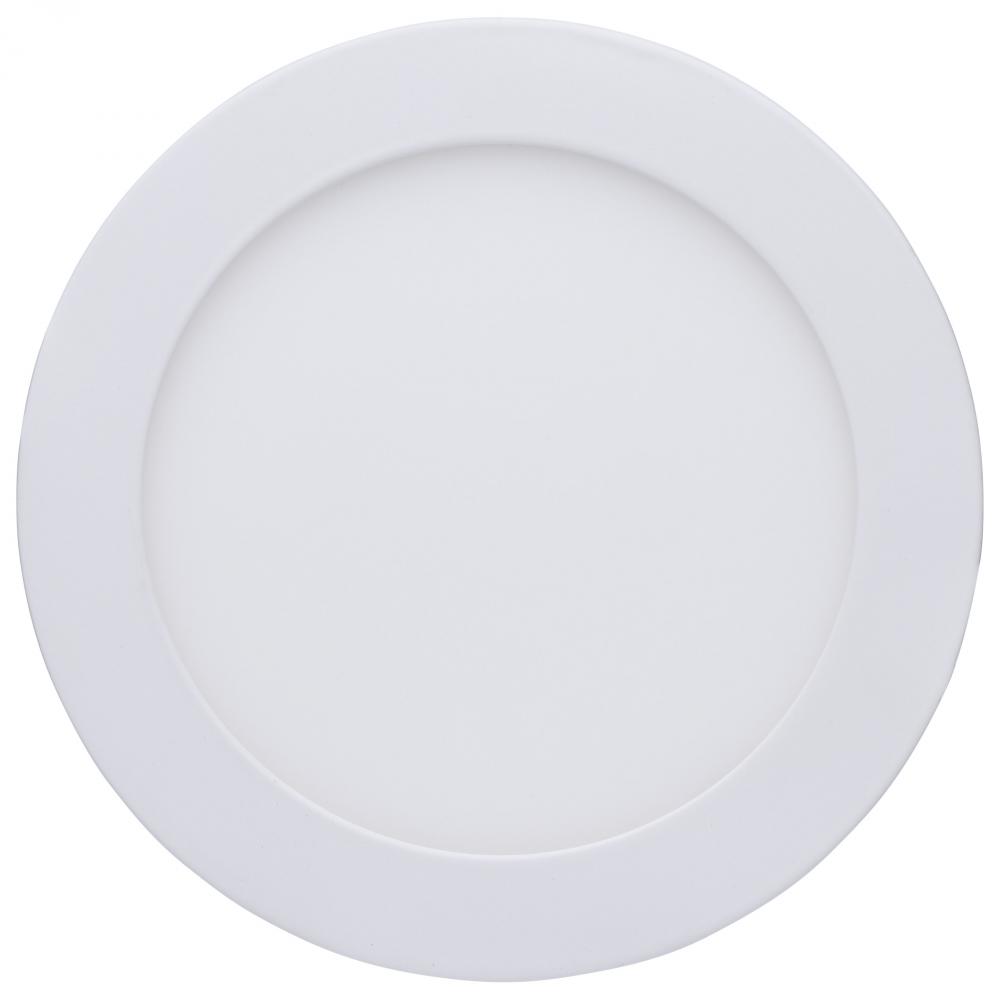

11/15 Watt; LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 6 Inch; Round; Flat Face; White Finish; 120-277 Volt; Dual Dimming
Standard Information
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Option:
Energy Star
LED
Prop 65
Refinement Options
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
6.77
Dimmable:
Yes-Dimmable
Each Height:
6.89
Each Length:
6.81
Each Width:
2.48
Lumens:
1050L/1350L
Tariff Code:
9405.11.6010
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.092-0.040/0.125-0.054A
ANSI Base:
Integrated
Beam Angle:
108
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Ceiling Aperture:
6.19 in. Cutout
Closet Rated:
Yes
Connection:
Direct Wired
Country Of Origin:
Vietnam
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
Triac at 120V / 0-10V at 120-277V
Dimming Type:
Dual Dimming
Each Cube:
0.0673
Each Quantity:
1
Efficacy:
95.45/90.00 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-3994345
FCC Compliant:
Yes

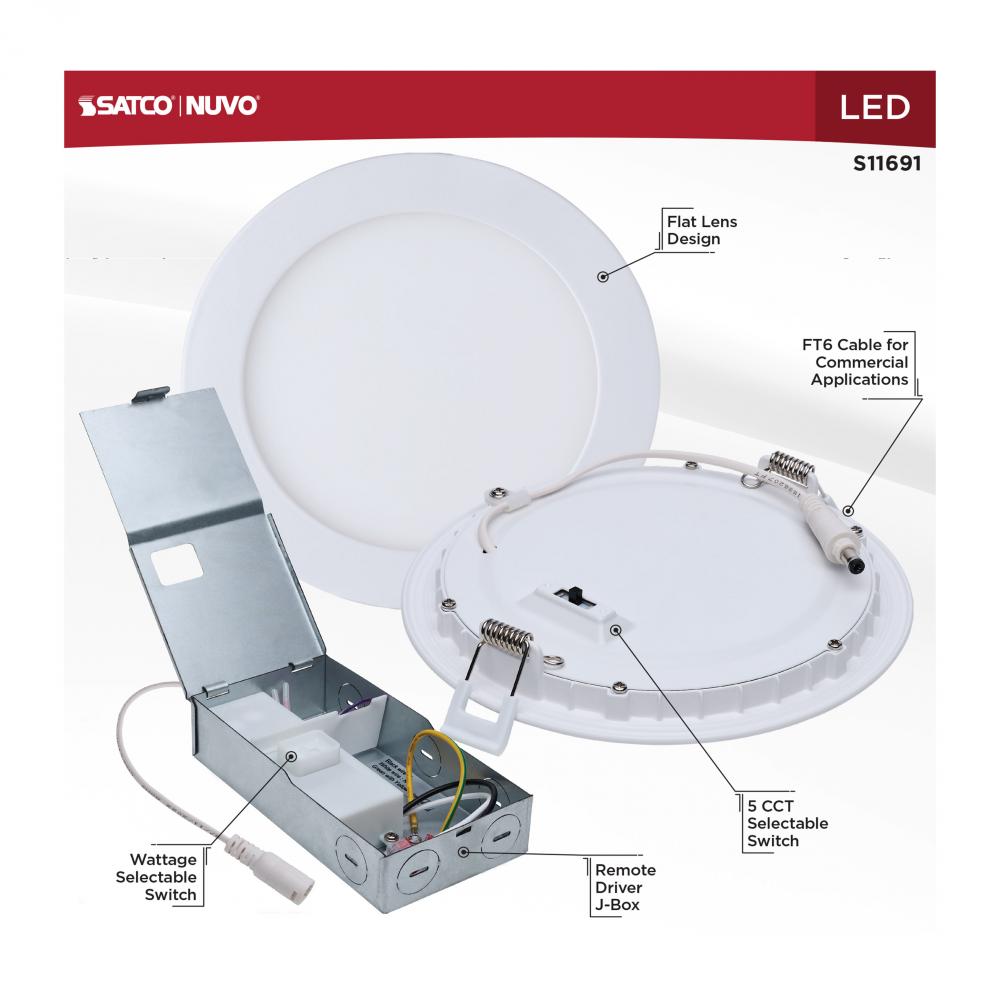

Feature 1:
Wattage Selectable for High & Very High Outputs
Feature 10:
5 Year Warranty
Feature 2:

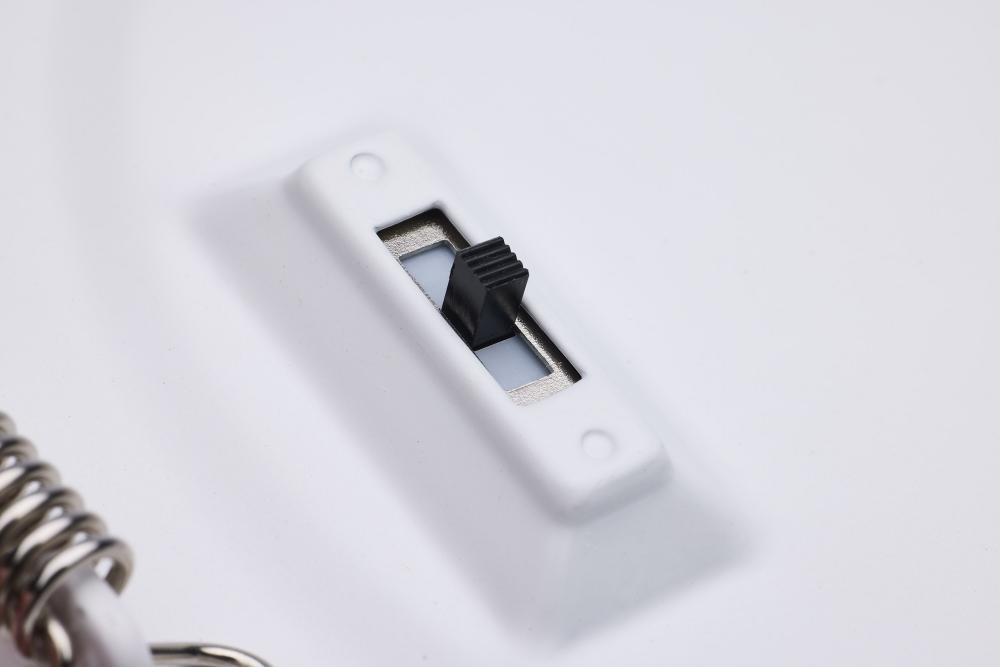

5 CCT Selectable from Warm to Natural Light
Feature 3:

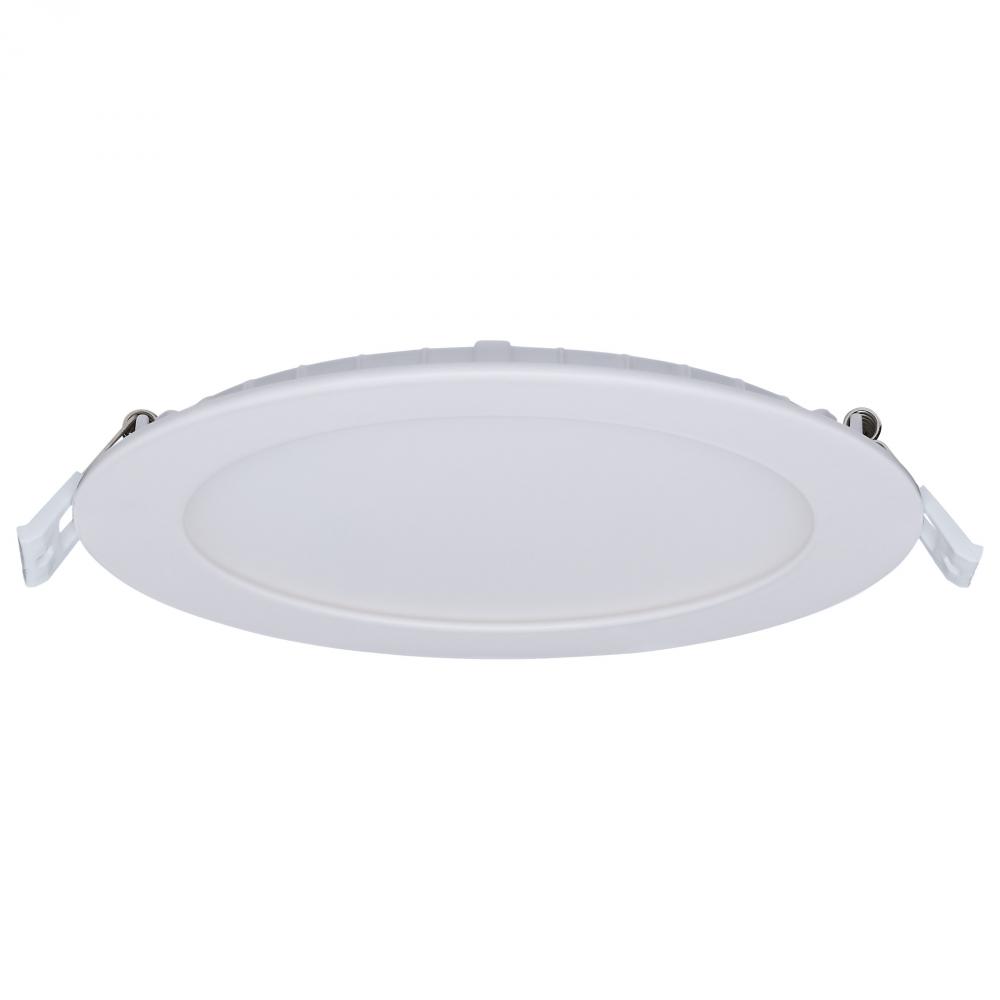

Flat Face Design for Reduced Glare
Feature 4:

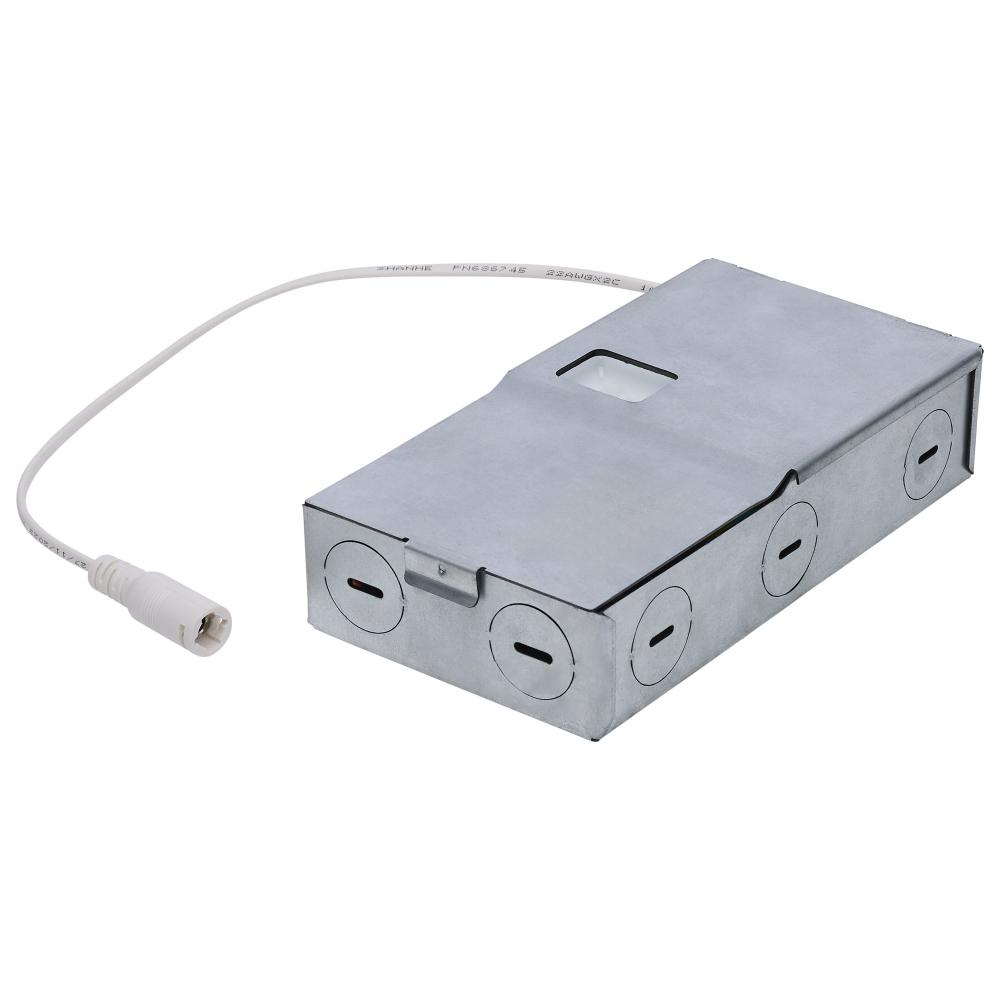

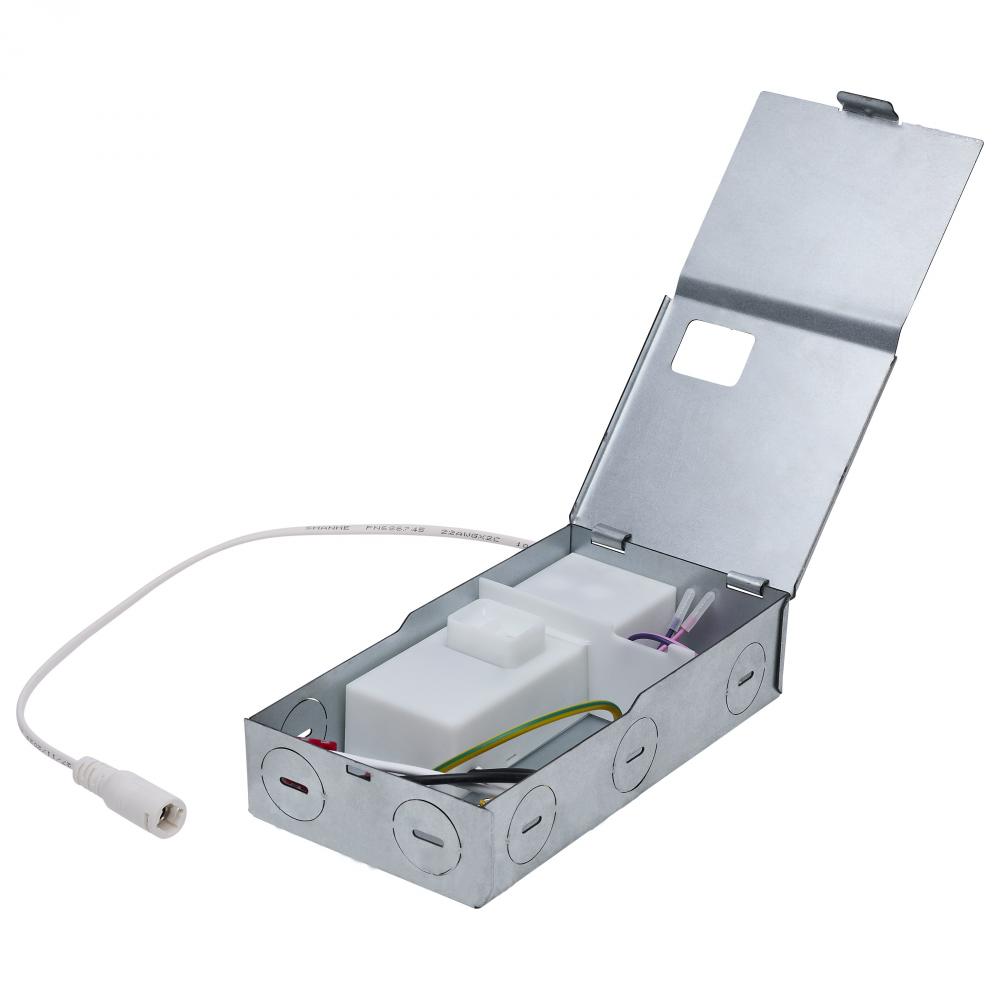

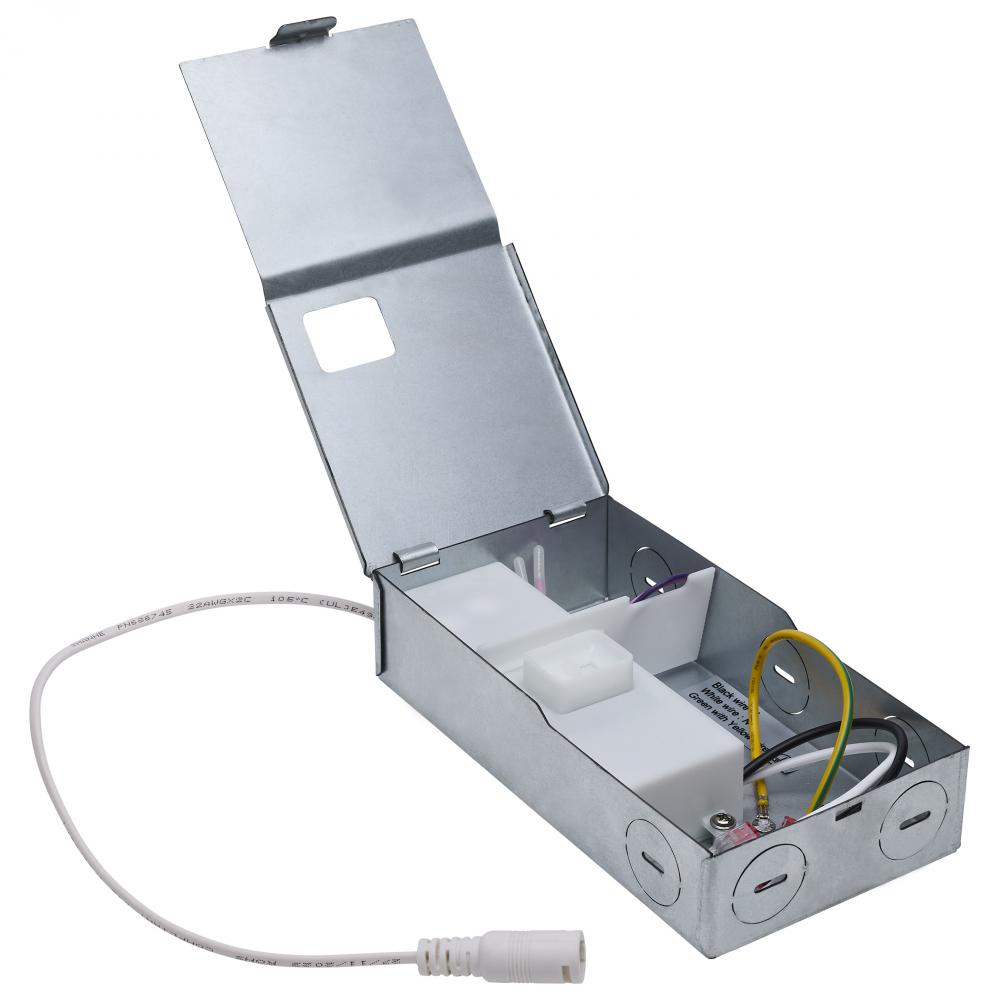

NEC Compliant Junction Box
Feature 5:
Dual Dimming
Feature 6:
FT6 Cable for Commercial Plenums
Feature 7:
90 CRI
Feature 8:
Wet Location Rated
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Round
IC Rated:
Yes
Incandescent Equivalent:
85W
Indoor Outdoor:
Indoor and Outdoor
Installation Notes:
Plenum Rated FT6 Cable
JA8 Compliant:
Yes
Lens Finish:
Matte Frosted
Lens Material:
Acrylic
Long Description:
The SATCO NUVO Pro Series LED Slimfit Downlights offer exceptional versatility and performance. The S11691 6-inch round model features field-selectable five CCT and two wattage options (11W/15W), delivering both high output (HO) and very high output (VHO)
Material:
Aluminum
Mounting Diameter:
6.18
Mounting Height:
1.61
NEC Compliance:
Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
50
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
The SATCO NUVO Pro Series LED Slimfit Downlights offer exceptional versatility and performance. Featuring field-selectable CCT and wattage technology, these downlights provide high output (HO) and very high output (VHO) options, ensuring bright, efficient
