Product Overview

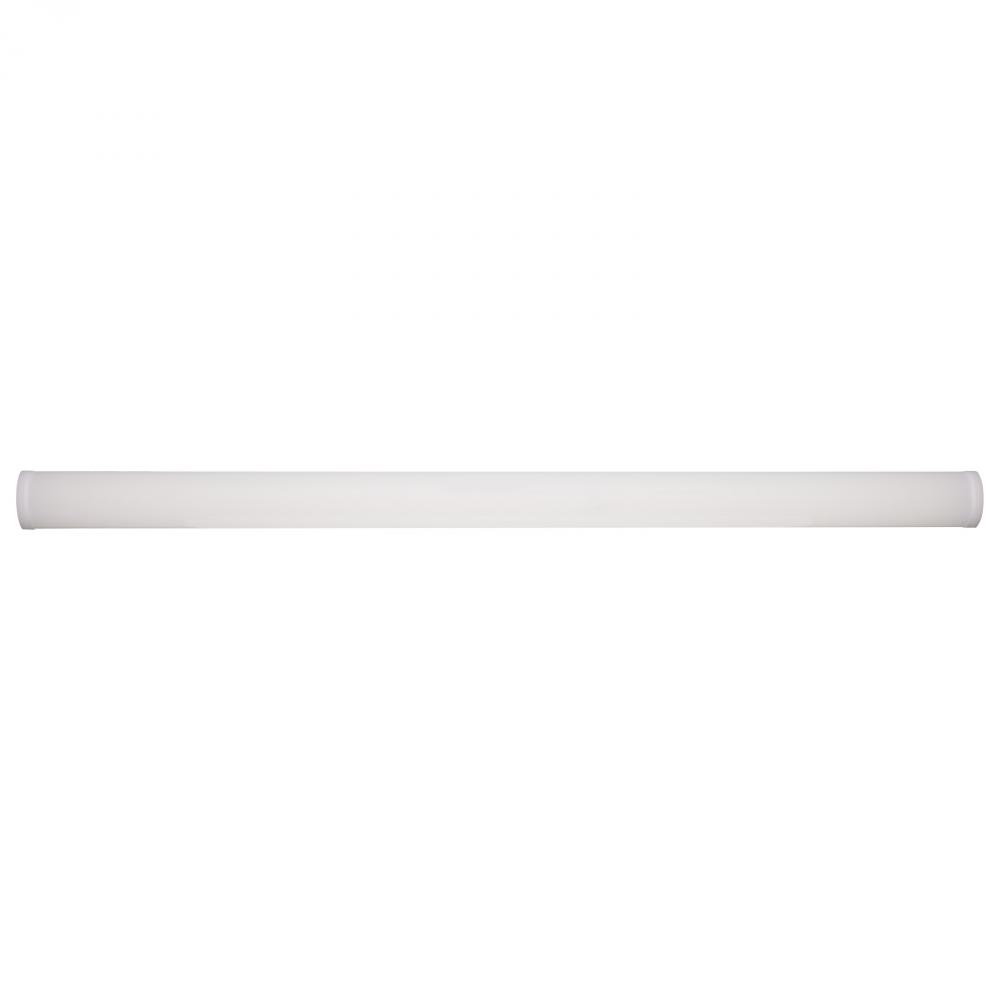

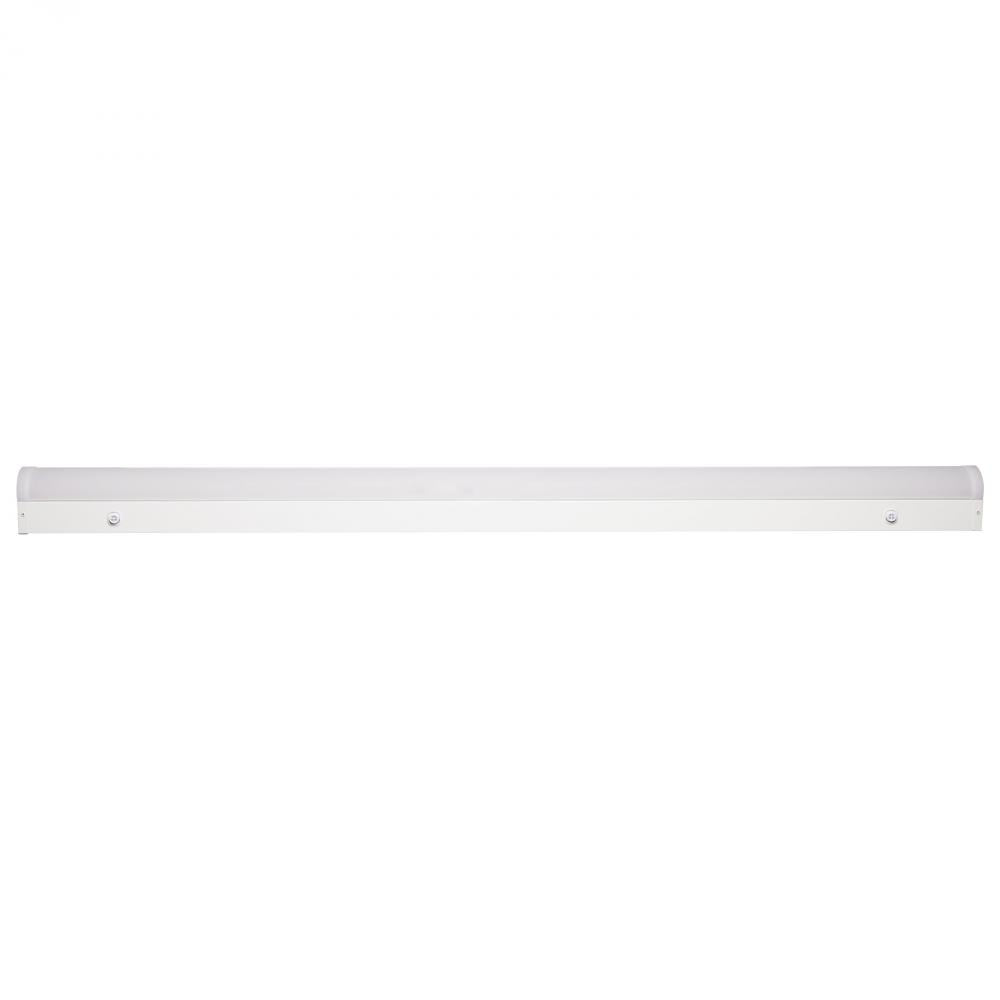

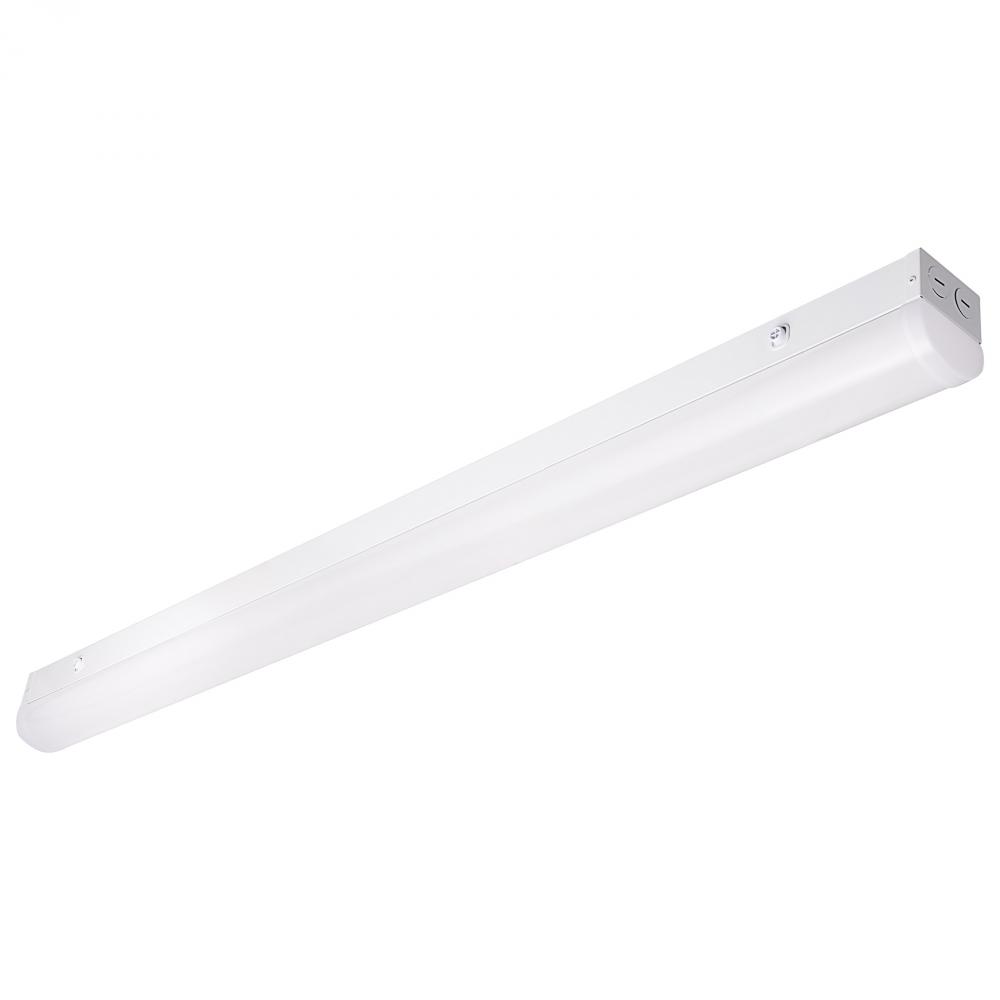

4 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish; Microwave Sensor

Standard Information

Category:

Undercabinet

Subcategory:

LED Undercabinet Lights

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

5501-6000

Refinement Options

Category:

Linear Strip

Sub Category:

Strip Fixture

Additional Info:

Other DLC Listings: S-5A4OGI, Standard, Direct Linear Ambient Luminaires; S-GB3EIK, Standard, Low-Bay Luminaires for Commercial and Industrial Buildings.

Avg Rated Hours:

50000

Bulb Type1:

LED

Color Temperature:

Neutral White to Daylight

Dimmable:

Yes-Dimmable

Each Height:

5.38

Each Length:

50.08

Each Width:

5.13

Length:

48

Lumens:

3900L-6750L

Tariff Code:

9405.11.6010

Warranty:

5 Year Limited - Fixtures

Amps:

0.250-0.108/0.333-0.144/0.417-0.181A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

120

B_U_G_Rating:

B2-U4-G2

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Vietnam

CRI:

80

Dimmable Down To:

100 to 10 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

Stairwell and Passageway Luminaires

Each Cube:

0.7999

Each Quantity:

1

Efficacy:

130.00/133.13/135.00 LPW

FCC Compliant:

Yes

Feature 1:

CCT & Wattage Selectable

Feature 2:

Flicker Free Driver

Feature 3:

0-10V Dimmable

Feature 4:

Multiple Mounting Options

Feature 5:

DLC Premium

Feature 6:

Integrated Microwave Sensor

Feature 7:

Ultra Slim Design

Finish Family:

White

Flicker Free:

Yes

Has Driver:

Yes

HID Equiv:

100W-150W

Incandescent Equivalent:

150W-175W

Indoor Outdoor:

Indoor

IOT Enabled:

No

IP Rating:

IP20

JA8 Compliant:

No

Lens Finish:

White

Lens Material:

Polycarbonate (PC)

Long Description:

The SATCO|NUVO 65-1701 LED 4-foot Linear Strip Fixture features an integrated microwave sensor for added energy efficiency and savings. With 3-CCT selectable options - 3500K, 4000K, 5000K and 3-Wattage options - 30W, 40W, 50W - the user can tailor the ligh

Material:

Steel

Mounting Diameter:

4.75

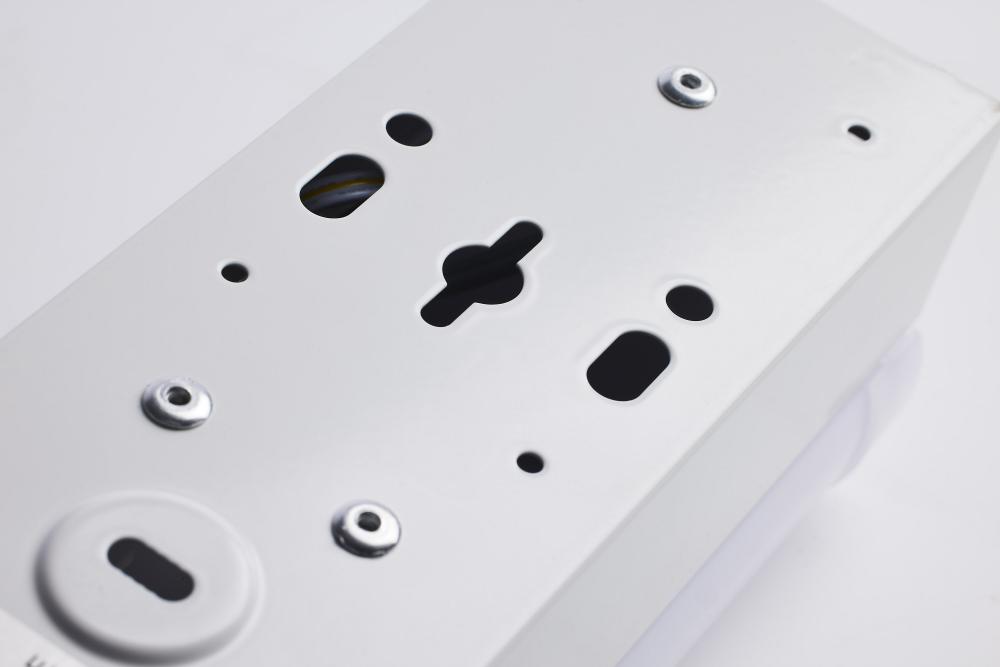

Mounting Procedure:

Ceiling/Wall

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +60C (+140F)

Pack Type:

Box

Photocell:

Optional Add-On

Power Factor:

0.9

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes. These fixtures provide flexibility with 3-CCT selectable options - 3500K, 4000K, and 5000K - allowing the user to tailor the lighting to their specific needs and preferences. Select mod

Safety Listing:

cULus - Listed

SDS class:

LED_Fixture

Short Description:

4' LINEAR STRIP W/SENSOR

Temperature (CCT):

3500K/4000K/5000K

Title 20 Compliant:

No

Total Harmonic Distortion:

10.71%

Wattage Selectable:

Yes

Weight Lb.:

3.56
