Product Overview

40 Watt; T5; Circline Fluorescent; 3500K Neutral White; 82 CRI; 2GX13 (4-Pin) base

Standard Information

Category:

Light Bulbs

Subcategory:

Fluorescent Light Bulbs

Finish:

White

Option:

Prop 65

Refinement Options

Category:

Fluorescent

Sub-Category:

Circline - T5-T6-T9

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

12000

Bulb Kelvin:

3500K

Bulb Shape:

T5

Diameter:

0.63

EA Length:

12.01

Harmonized Codes:

8539.31.0070

Length:

12

Lumens:

3300L

Shap Carton Width:

0.79

Ship Carton Height:

12.01

Ship Weight:

0.47

Warranty:

Avg. Rated Hour Limited

BAA Compliant:

No

Ballast Bypass Direct:

Direct

Ballasting Requirements:

For Use With Electronic Ballasts

Beam Spread:

360

Bulb ANSI Base:

2GX13

Bulb Base:

2GX13 (4-Pin)

Bulb Finish:

Frost

Burning Position:

Universal

CA Prop-65:

Lead

Carton Cubic Feet:

0.0659

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Non-Compliant - Mercury Content

CEC Terse:

Non-Compliant

CEC Web Text:

Non-Compliant

Color Temprature:

Neutral White

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

82.50 LPW

Feature 1:

360-degree beam spread

Feature 2:

Operating temperature: Ballast dependent

Feature 3:

Rated for use in enclosed fixtures

Feature 4:

Dry location rated

Feature 5:

Luminous efficacy: 82.50 lm/w

Feature 6:

Non-Dimmable

Housing Color:

None

Installation Notes:

Outer Diameter is 12 inches

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type A

Lens:

Yes

Lens Finish:

Frost

Long Description:

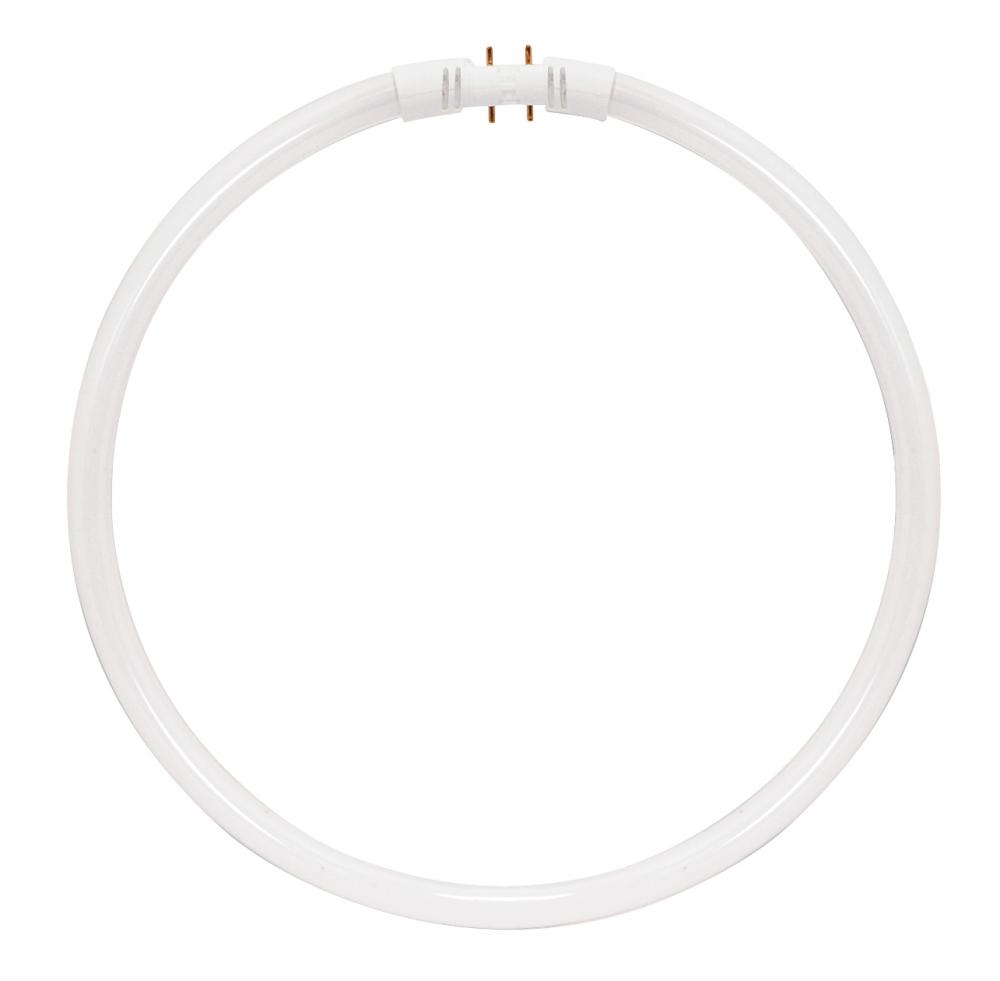

The SATCO S8155 T5 circline fluorescent lamp is designed to provide energy savings in slim spaces. The 40-Watt, 3500K neutral white lamp fits into circular fixtures with four-pin bases. This Circline lamp can be used in both decorative and retail environme

Nominal Length:

12

Operating Temp:

Ballast Dependent

Pack Type:

Box

Quantity In Pack:

1

RI Terse:

Non-Compliant

RoHS Compliant:

Yes

Romance Copy:

The SATCO T5 circline fluorescent lamps are designed to provide energy savings in slim spaces. These lamps are designed to fit into circular fixtures with four-pin bases. Circline lamps can be used in both decorative and retail environments.

SDS class:

Linear_Fluorescent_Lamp

Short Description:

FC40T5/835

Technology:

Fluorescent

Title 20 Compliant:

No

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

40W

Country of Origin- China
