45 Watt LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Medium Base; 277-480 Volt; : 40JCMNK

Return to Catalog

Part Number: 40JCMNK / Vendor ID #: 4799

45 Watt LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Medium Base; 277-480 Volt;

$163.68

On Sale

Normally $204.60 | You Save $40.92

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 229 items available.

Dimensions

Width: 3.35"

Product Overview

45 Watt LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Medium Base; 277-480 Volt; ColorQuick Technology

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Lumens:

3300+

Kelvin:

3001-3500

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

277V-480V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/4000K/5000K

Bulb Shape:

Corncob

Diameter:

3.35

EA Length:

10.98

Harmonized Codes:

8539.52.0091

Length:

8.91

Lumens:

5850L/6300L/6075L

Shap Carton Width:

3.66

Ship Carton Height:

3.66

Ship Weight:

1.83

Warranty:

5 Year Limited - Hi-Pro

Weight:

1.58

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

300

Bulb ANSI Base:

E26

Bulb Base:

Medium

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0851

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - >2600 Lumens

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm to Cool White

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

Only Dimmable Via Sensor Port

Dimming Type:

Smart-Starfish App only

DLC Approved:

Efficacy:

130.00/140.00/135.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

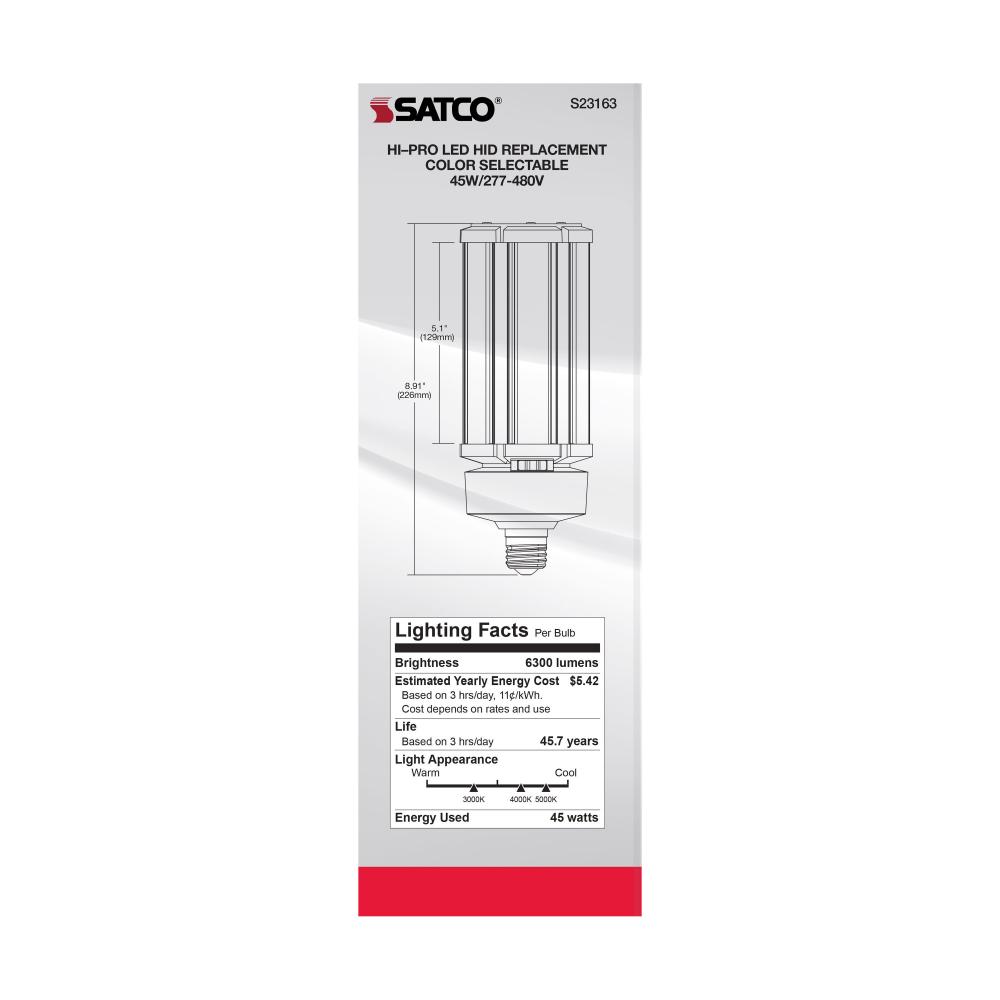

MOL: 8.91, MOD: 3.35 inches

Feature 2:

Corncob Shape

Feature 3:

White Finish

Feature 4:

Medium Base

Feature 5:

300 degree beam spread

Feature 6:

Rated for 50,000 hours

Feature 7:

CCT Selectable

Feature 8:

5 year limited warranty

Feature 9:

Damp rated for indoor and outdoor use

HID Equivalent:

200W

Housing Color:

Dark Gray

Incandescent Equivalent:

125W

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

IP Rating:

IP64

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Lens Material:

Plastic

Location Rating:

Damp

Long Description:

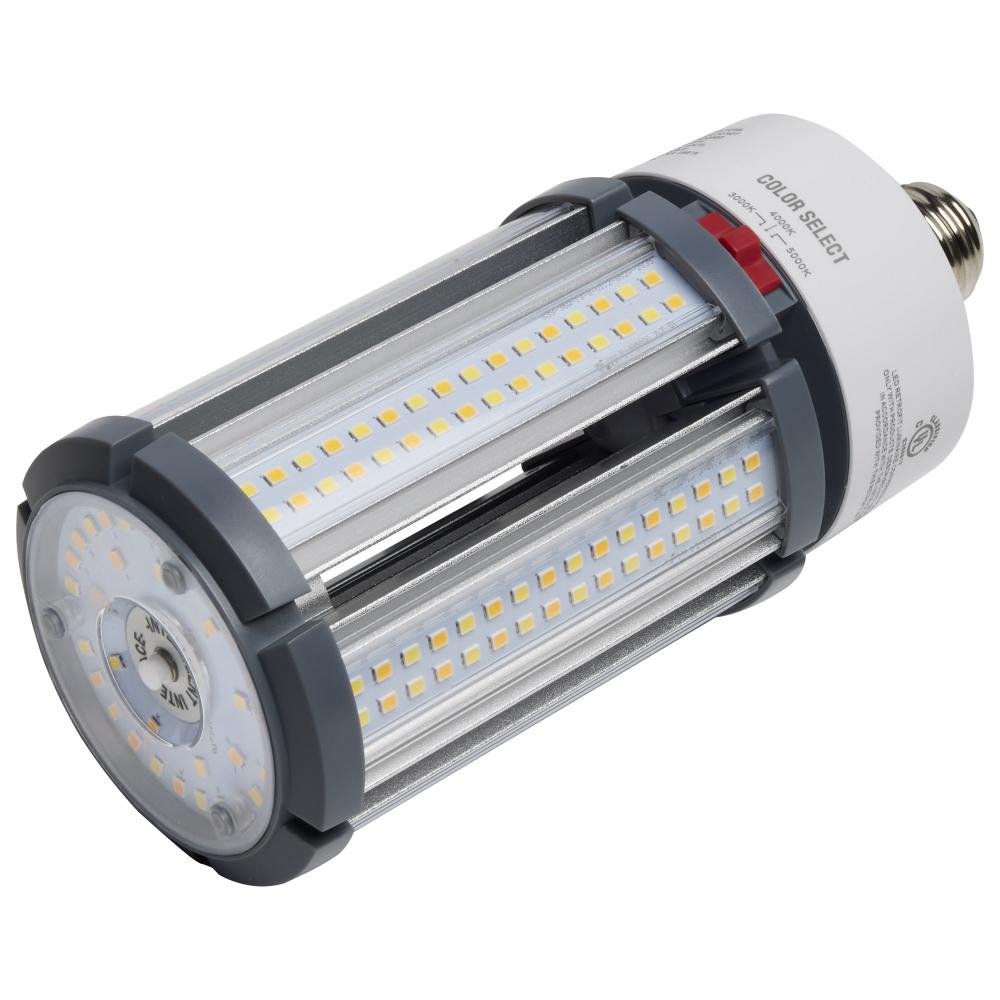

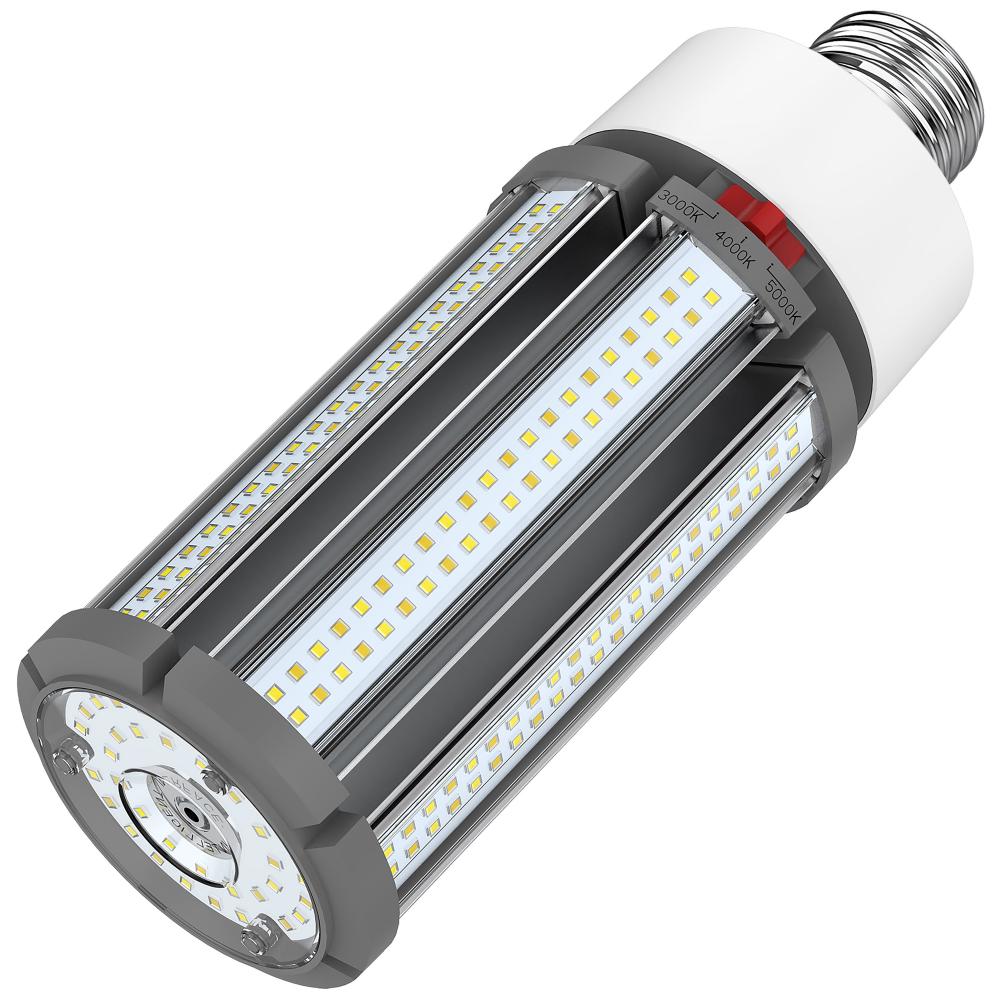

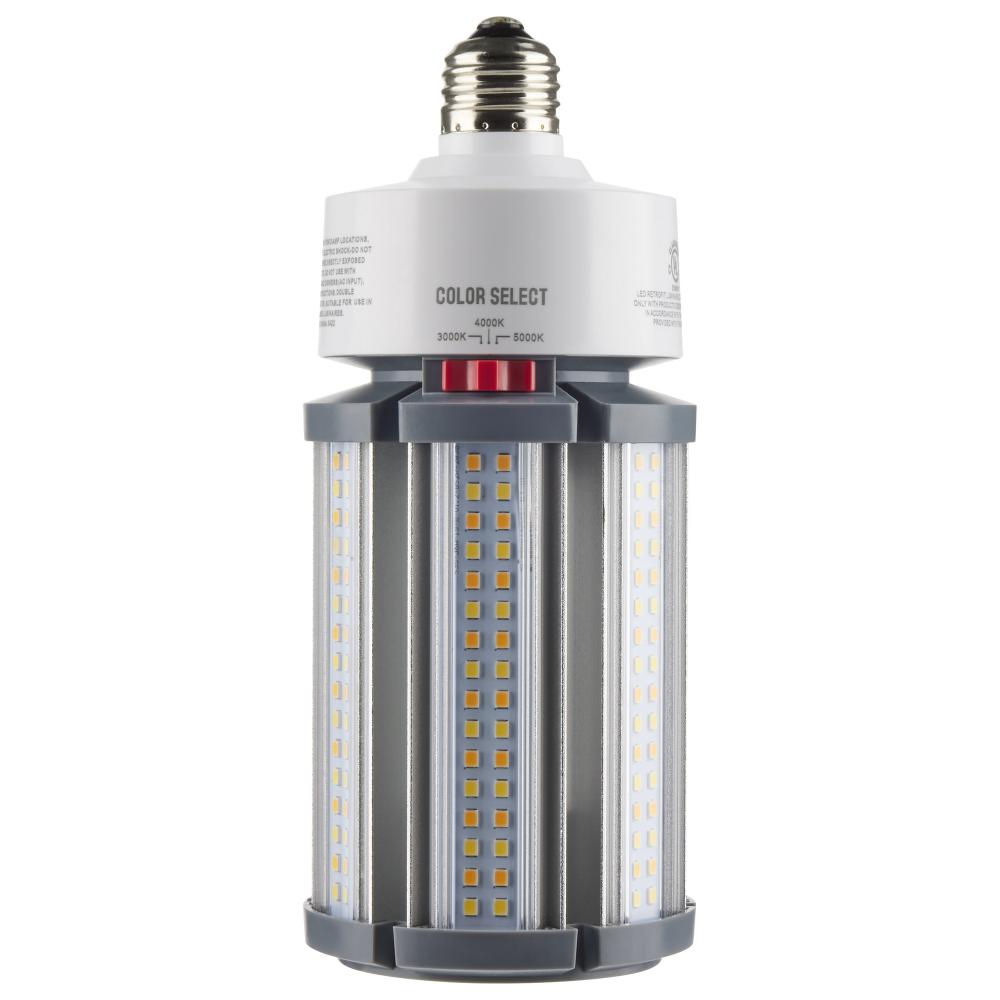

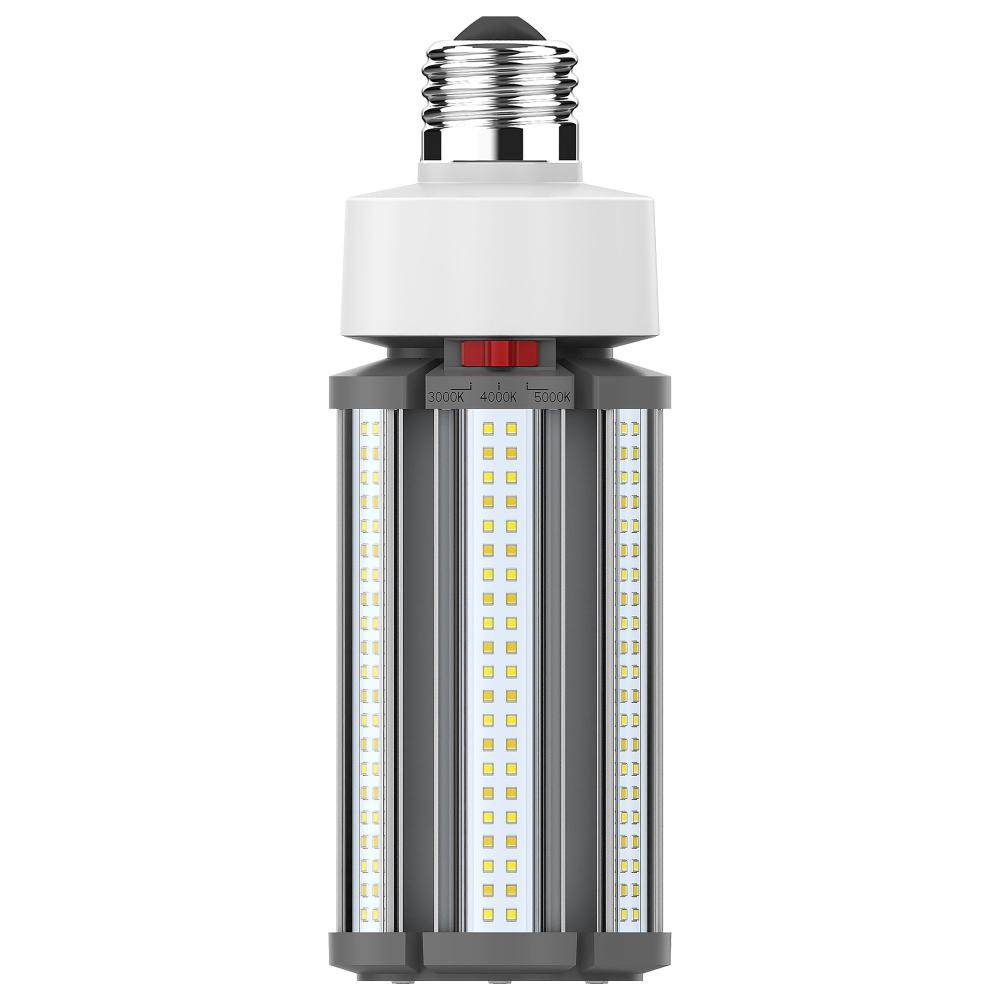

Satco's S23163 45 watt corncob lamp is the lamp of choice for large scale applications. Illuminate gymnasiums, warehouses, or any other venue with high ceilings requiring superior light output. This CCT selectable lamp delivers 50,000 hours of clean, e

Material:

Aluminum / Polycarbonate (PC)

NSF Approved:

Operating Frequency:

50/60Hz

Operating Temp:

-30C (-22F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Photocell:

Optional

Power Factor:

0.9

Quantity In Pack:

R9 Value:

RoHS Compliant:

Yes

Romance Copy:

Satco's 45 watt corncob lamp is the lamp of choice for large scale applications. Illuminate gymnasiums, warehouses, or any other venue with high ceilings requiring superior light output. This CCT selectable lamp delivers 50,000 hours of clean, energy s

SDS class:

LED_Lamp

Short Description:

45W/LED/CCT/277-480V/E26

Style:

Utility

Surge Protection:

Built-in surge protection - 4KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Wattage Selectable:

Watts:

45W

Country of Origin- China
